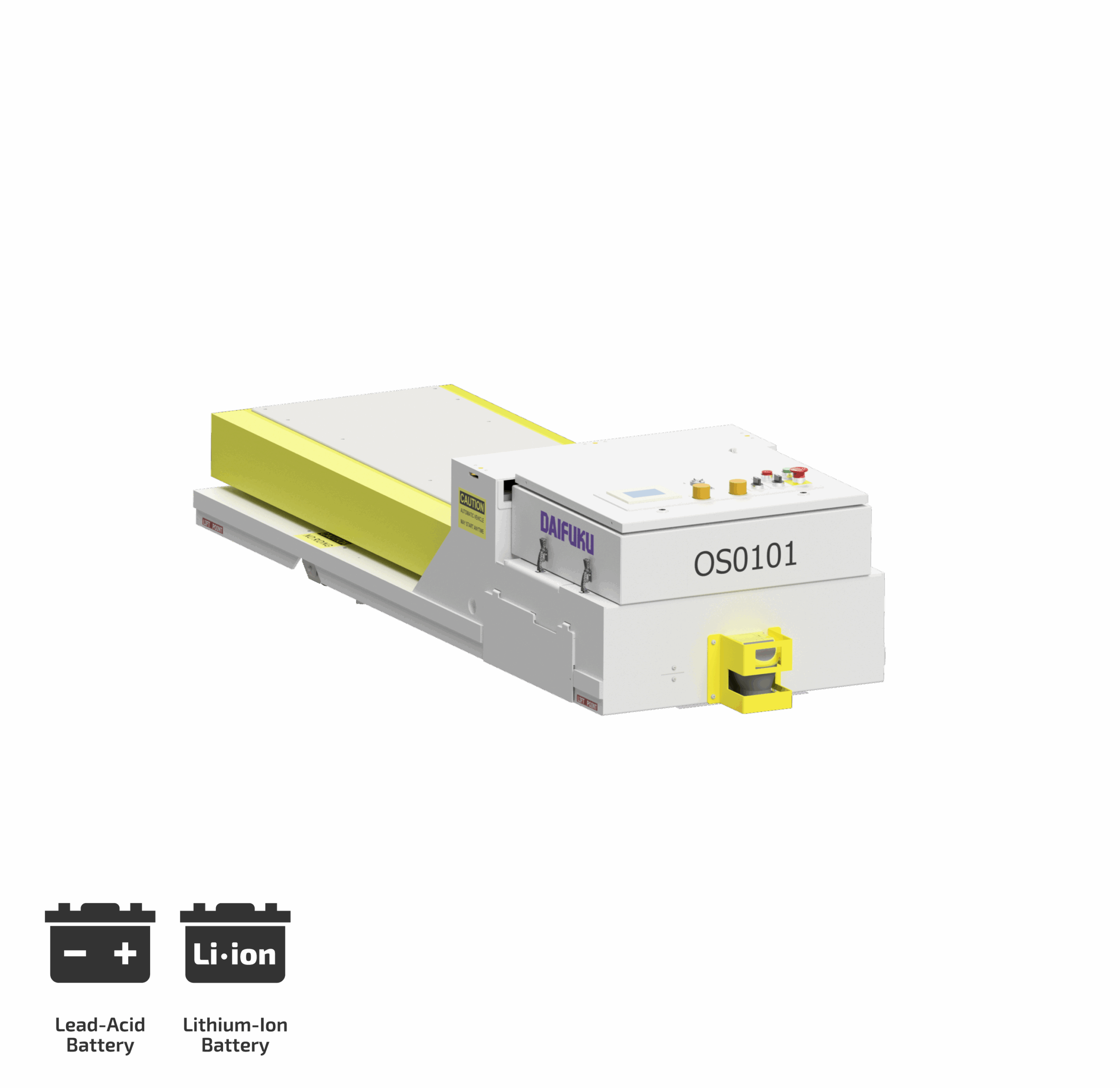

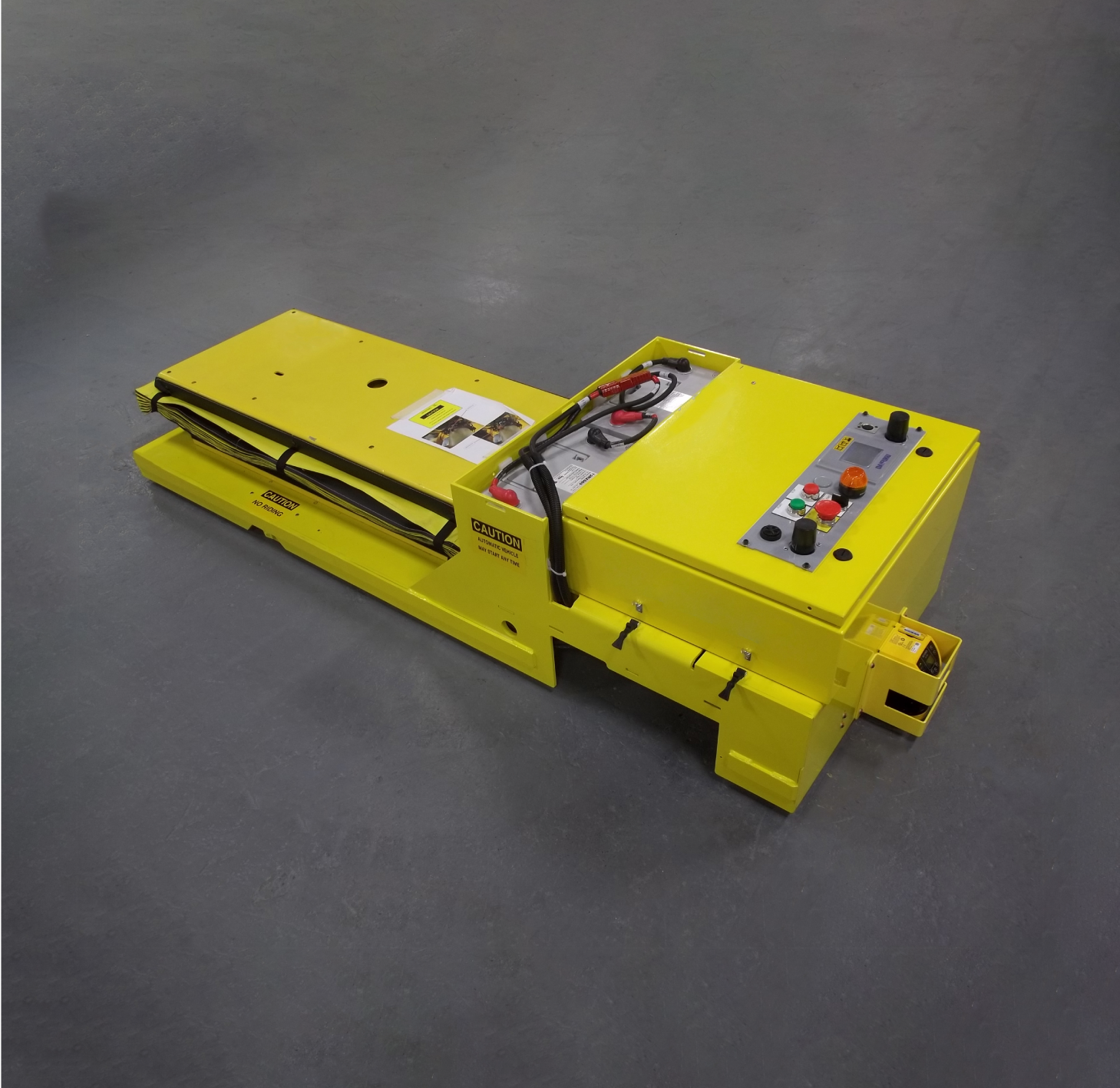

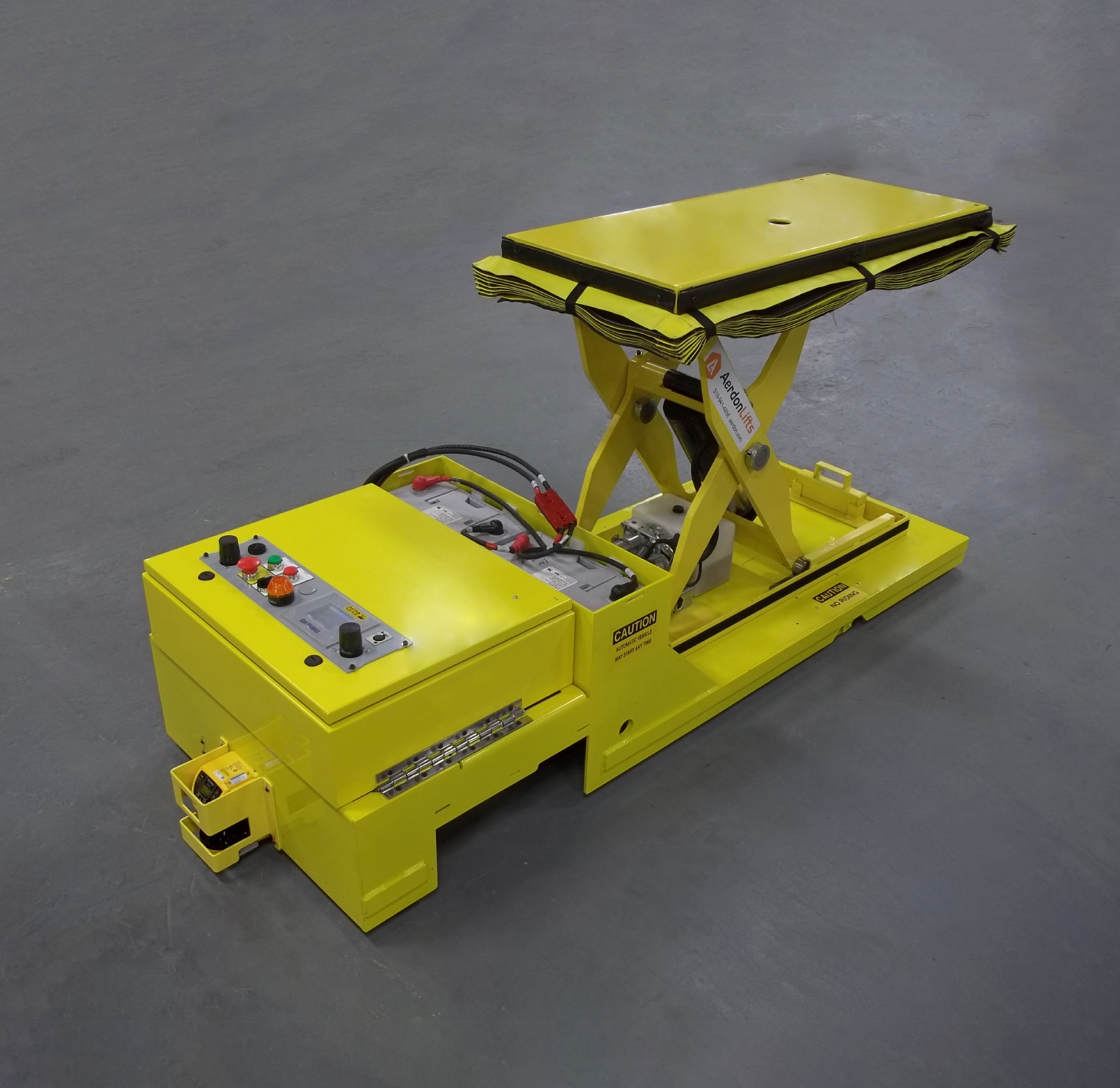

M100-A
The M100-A is an Assembly Line AGV capable of towing 1,900 lbs.
Specifications
|
Base Capacity |
750 lbs |
|---|---|
|
Footprint |
28" W x 76" L |
|
Travel Speed |
7 to 160 fpm |
|
90° / 180° Turn Radius |
24" / 30" |
|
Max Charge |
80 amp |
|
Base Capacity |
340 kg |
|---|---|
|
Footprint |
711 mm W x 1930 mm L |
|
Travel Speed |
2 to 49 mpm |
|
90° / 180° Turn Radius |
610 mm / 762 mm |
|
Max Charge |
80 amp |
Features of the M100-A
Safety
All Daifuku AGVs meet the ANSIB56.5 Safety Standard for North America and meet or can be modified to meet CE Safety Standards for the UK, Europe, and Australia.
Return on Investment
Faster ROI than other automated assembly lines
Easy to Manage
Customers can change and modify themselves without assistance
Longevity
Long life span with minimal maintenance
Adaptability
Assembly lines adopt to any available floor space

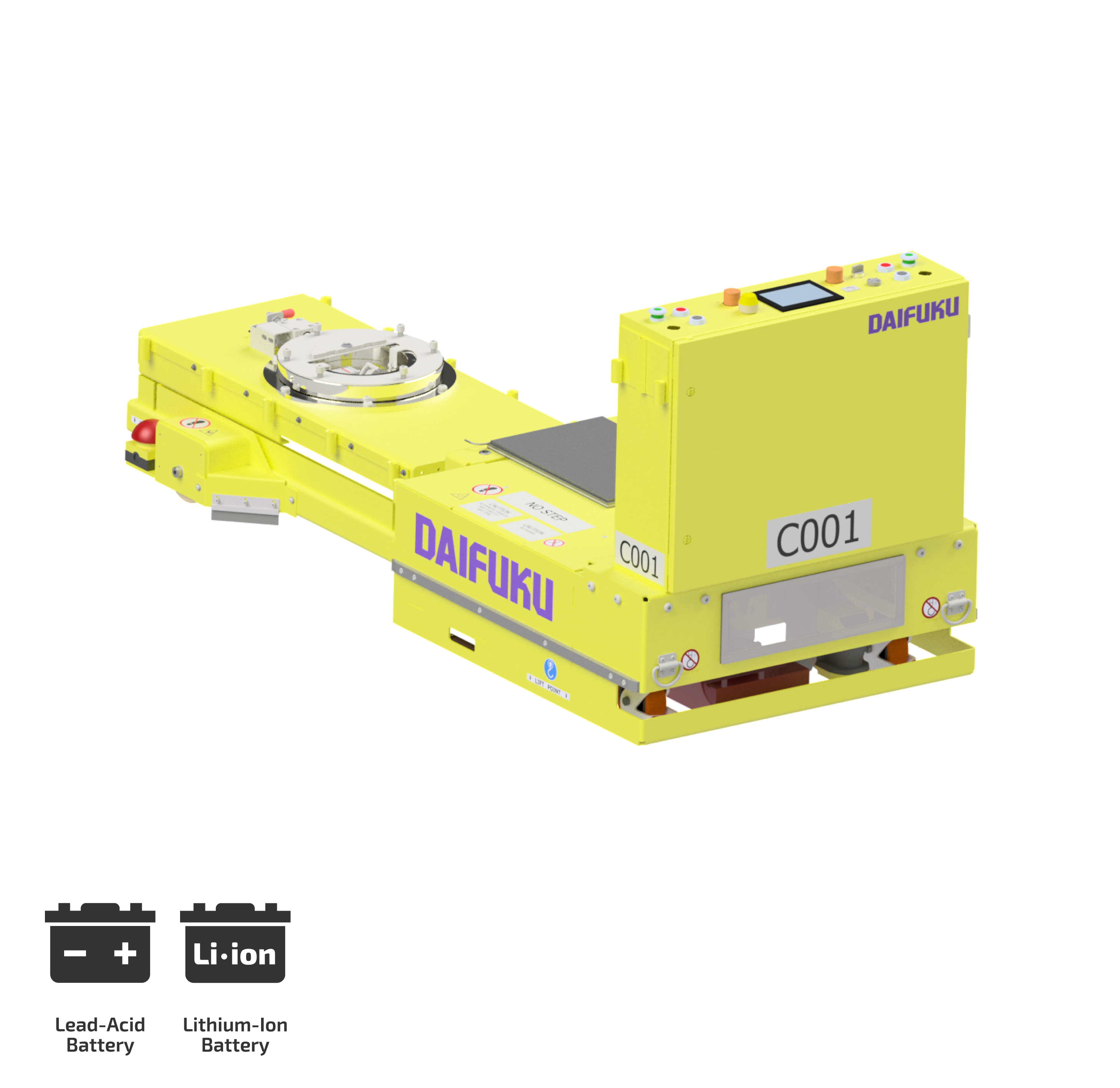

M200-A
The M200-A is an Assembly Line AGV capable of towing 5,000 lbs or burden carrying 3,000 lbs.
Specifications
|
Base Capacity |
2,500 lbs / 4,000 lbs |
|---|---|
|
Footprint |
36" W x 86" L / 42" W x 105" L |
|
Travel Speed |
1.5 to 160 fpm |
|
90° / 180° Turn Radius |
24" / 30" |
|
Max Charge |
140 amp |
|
Base Capacity |
1,134 kg / 1,814 kg |
|---|---|
|
Footprint |
914 mm W x 2,184 mm L / 1,067 mm W x 2,667 mm L |
|
Travel Speed |
1 to 49 mpm |
|
90° / 180° Turn Radius |
610 mm / 762 mm |
|
Max Charge |
140 amp |
Features of the M200-A
Safety
All Daifuku AGVs meet the ANSIB56.5 Safety Standard for North America and meet or can be modified to meet CE Safety Standards for the UK, Europe, and Australia.
Return on Investment
Faster ROI than other automated assembly lines
Easy to Manage
Customers can change and modify themselves without assistance
Longevity
Long life span with minimal maintenance
Adaptability
Assembly lines adopt to any available floor space

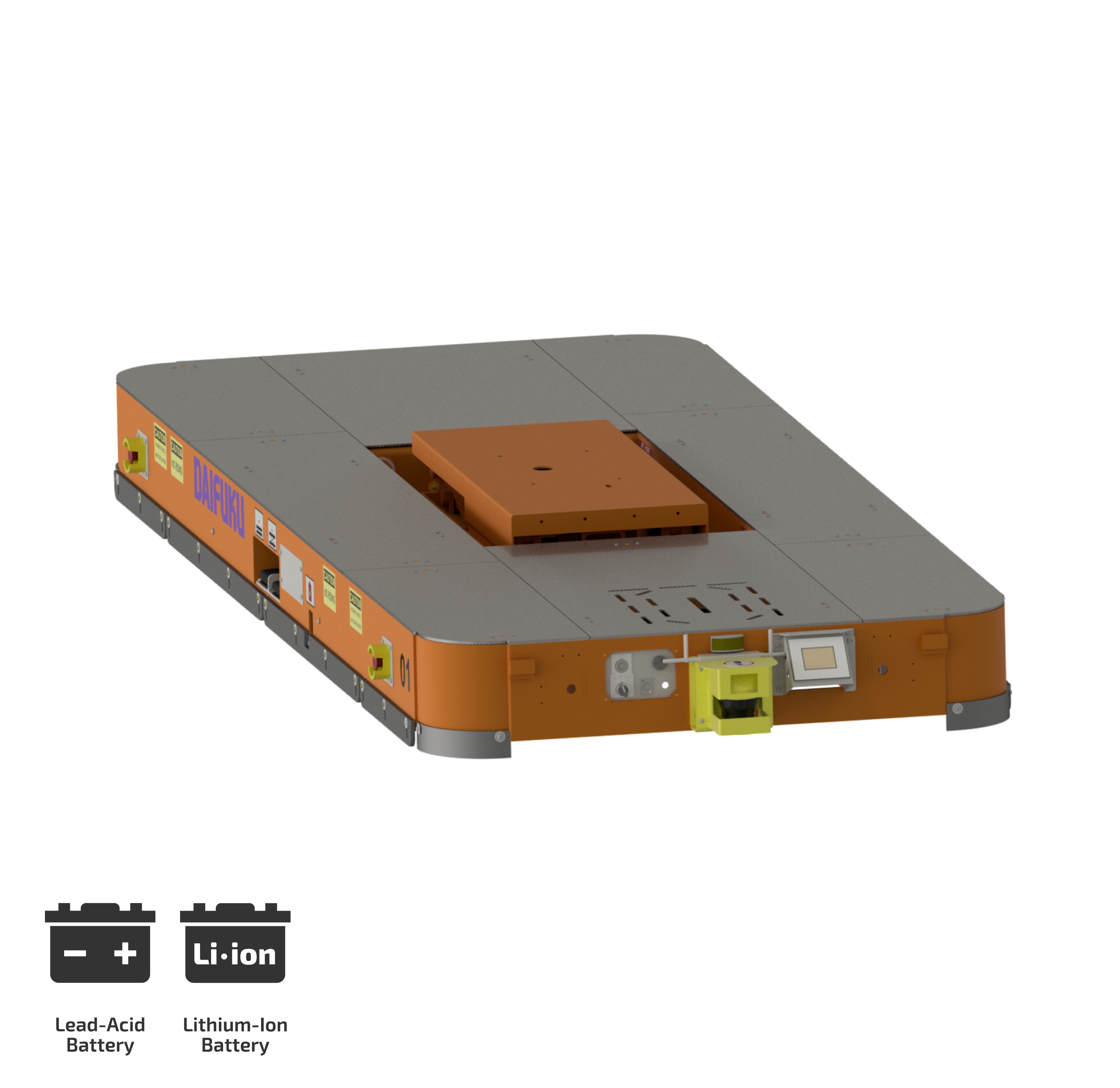

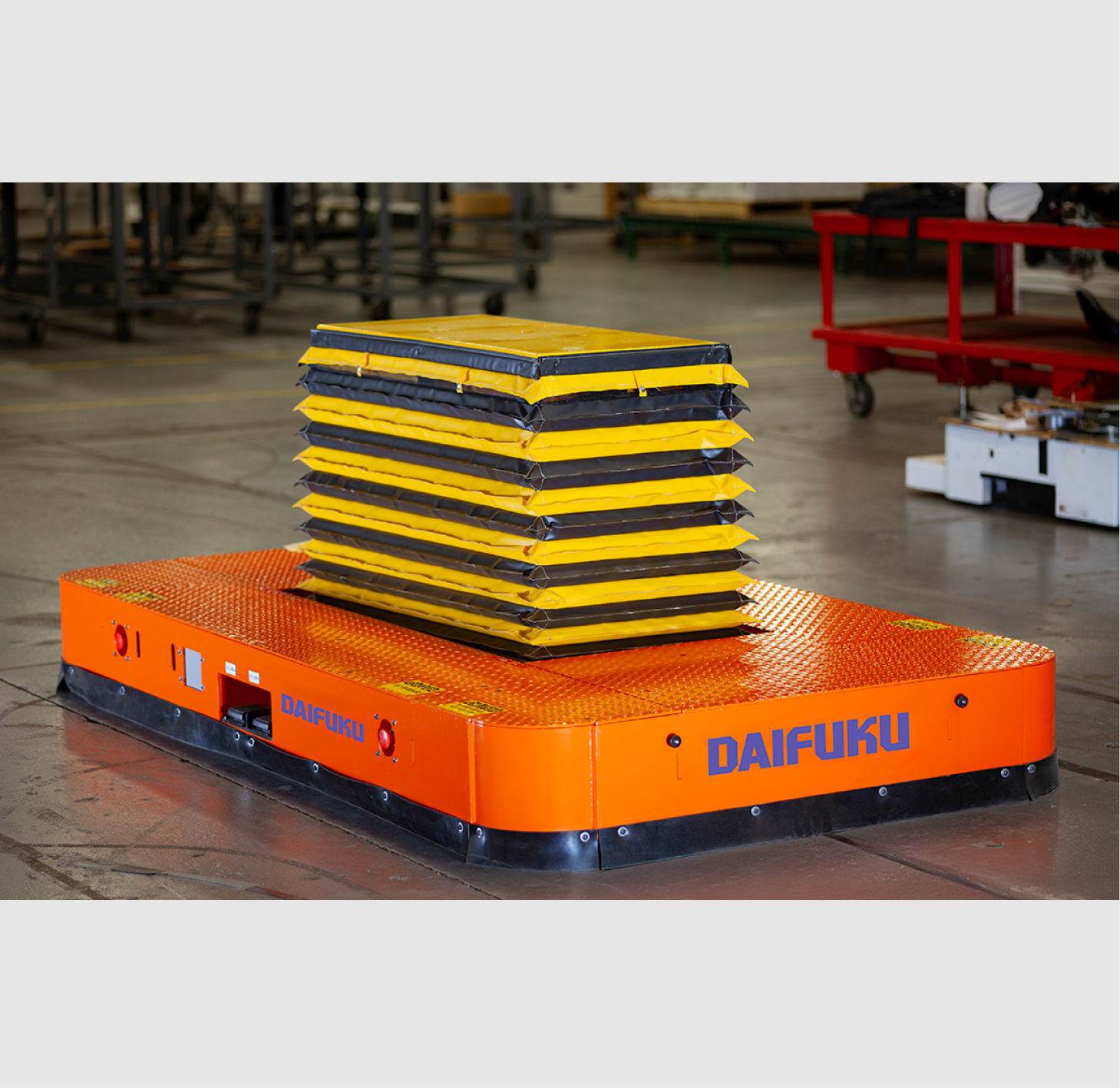

M250-A
The M250-A assembly AGV has a large platform and will carry 2,500 lbs in an assembly line system.
Specifications
|
Base Capacity |
2,500 lbs |
|---|---|
|
Footprint |
60" W x 80" L x 10.4" H |
|
Travel Speed |
1.5 to 120 fpm |
|
90° / 180° Turn Radius |
60" / 60" |
|
Max Charge |
140 amp |
|
Base Capacity |
1,134 kg |
|---|---|
|
Footprint |
1,524 mm W x 2,032 mm L x 264 mm H |
|
Travel Speed |
1 to 37 mpm |
|
90° / 180° Turn Radius |
1,524 mm / 1,524 mm |
|
Max Charge |
140 amp |
Features of the M250-A
Safety
All Daifuku AGVs meet the ANSIB56.5 Safety Standard for North America and meet or can be modified to meet CE Safety Standards for the UK, Europe, and Australia.
Return on Investment
Faster ROI than other automated assembly lines
Easy to Manage
Customers can change and modify themselves without assistance
Longevity
Long life span with minimal maintenance
Adaptability
Assembly lines adopt to any available floor space

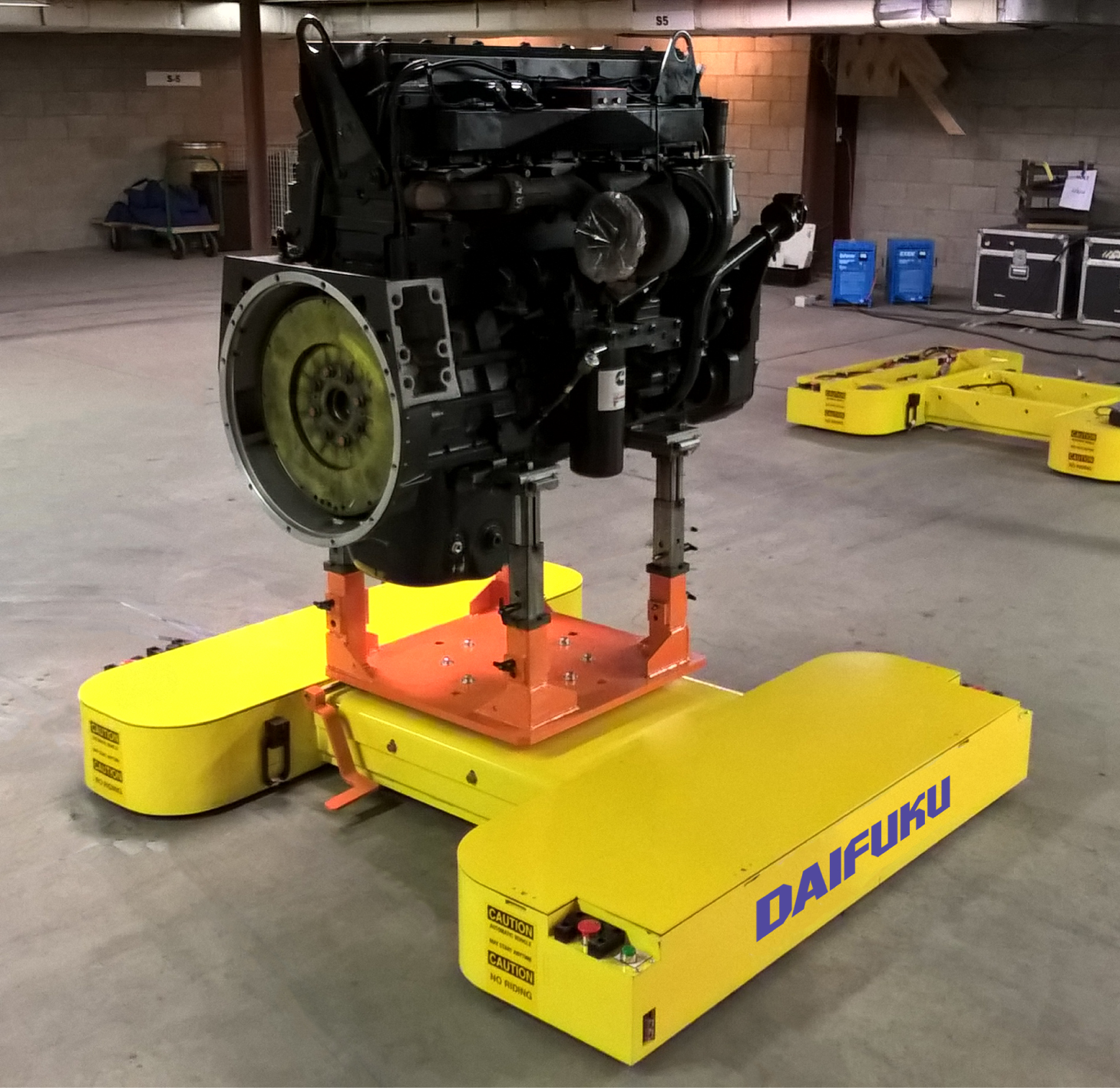

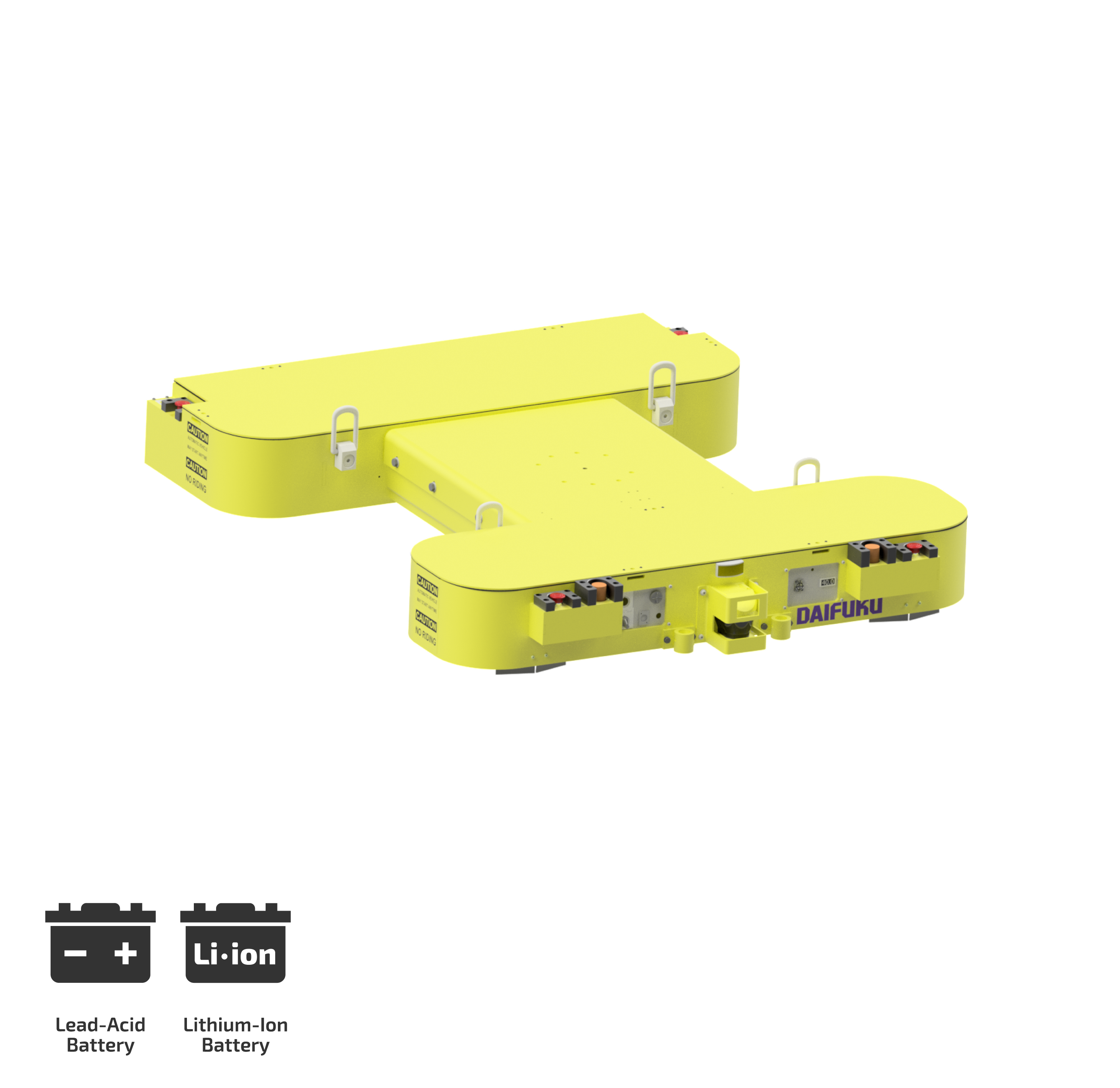

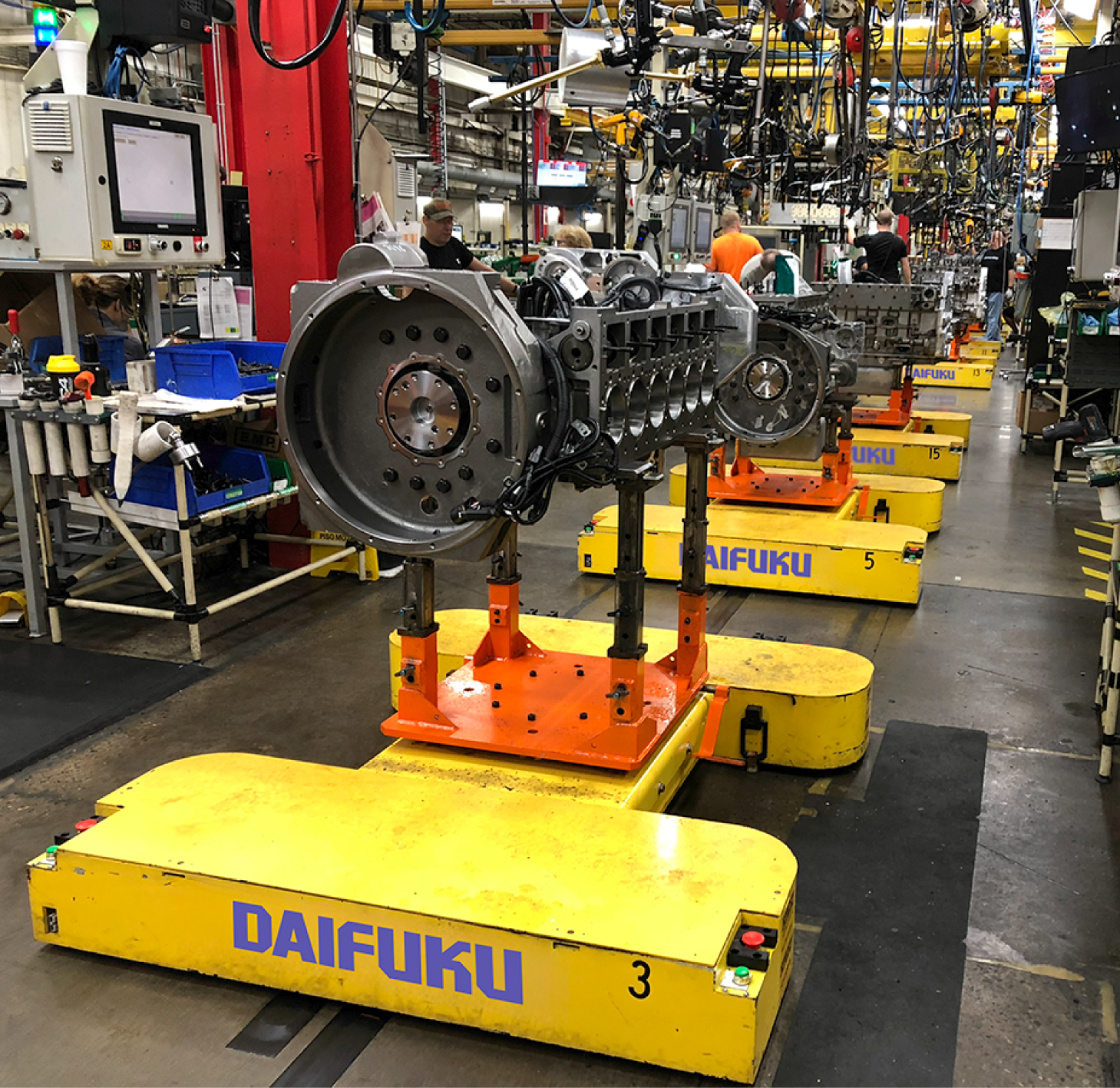

M500-A
The M500-A is a larger Assembly Line AGV with a capacity to carry a load of 5,000 lbs during an assembly process.
Specifications
|
Base Capacity |
5,000 lbs |
|---|---|
|
Footprint |
60" W x 46" L x 9.3" H |
|
Travel Speed |
2 to 120 fpm |
|
90° / 180° Turn Radius |
60" / 60" |
|
Max Charge |
140 amp |
|
Base Capacity |
2,268 kg |
|---|---|
|
Footprint |
1,524 mm W x 1,168 mm L x 236 mm H |
|
Travel Speed |
1 to 37 mpm |
|
90° / 180° Turn Radius |
1,524 mm / 1,524 mm |
|
Max Charge |
140 amp |
Features of the M500-A
Safety
All Daifuku AGVs meet the ANSIB56.5 Safety Standard for North America. The M500-A can also be modified to meet CE Safety Standards for the UK, Europe, and Australia.
Return on Investment
Faster ROI than other automated assembly lines
Easy to Manage
Customers can change and modify themselves without assistance
Longevity
Long life span with minimal maintenance
Adaptability
Assembly lines adopt to any available floor space

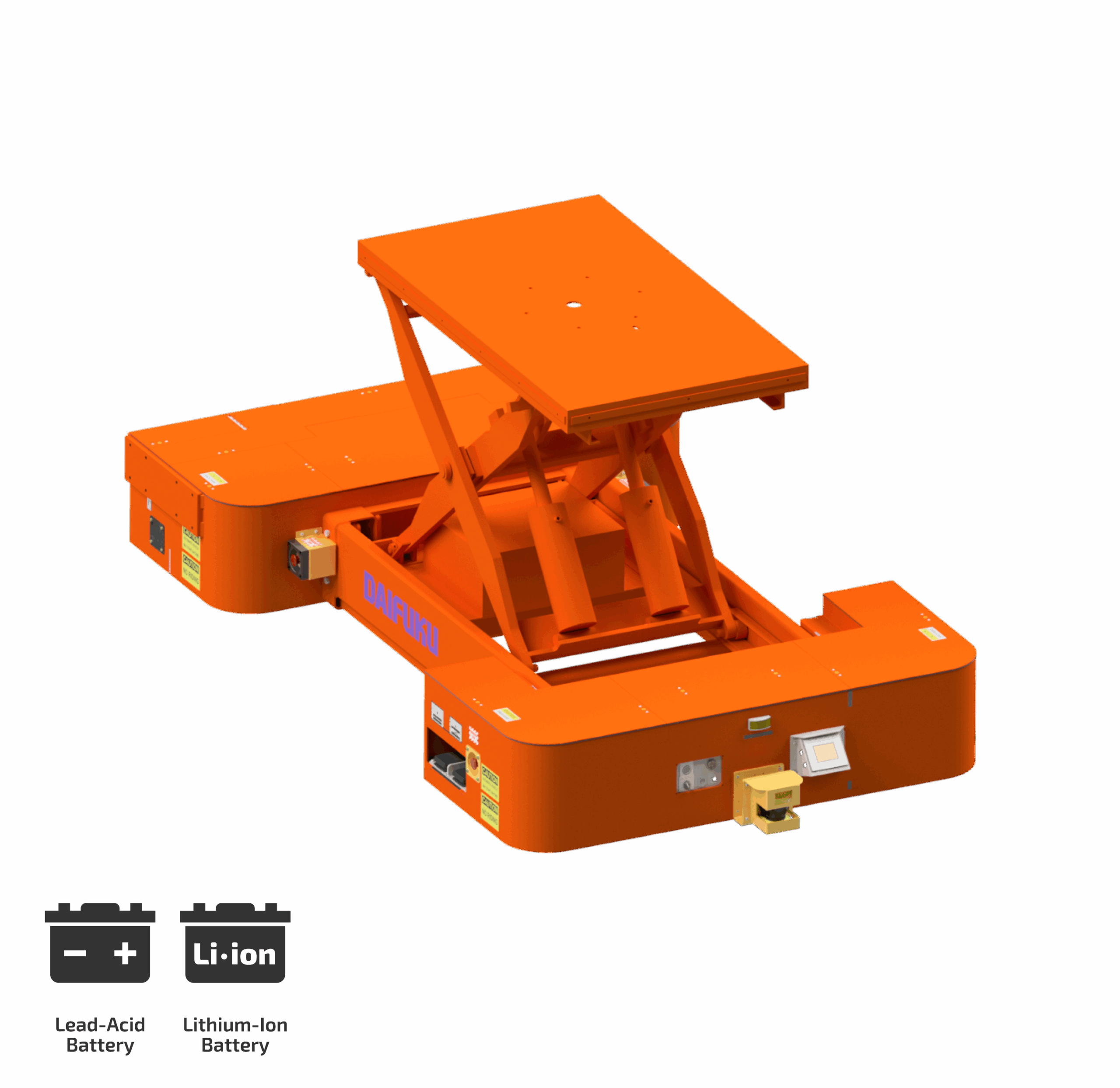

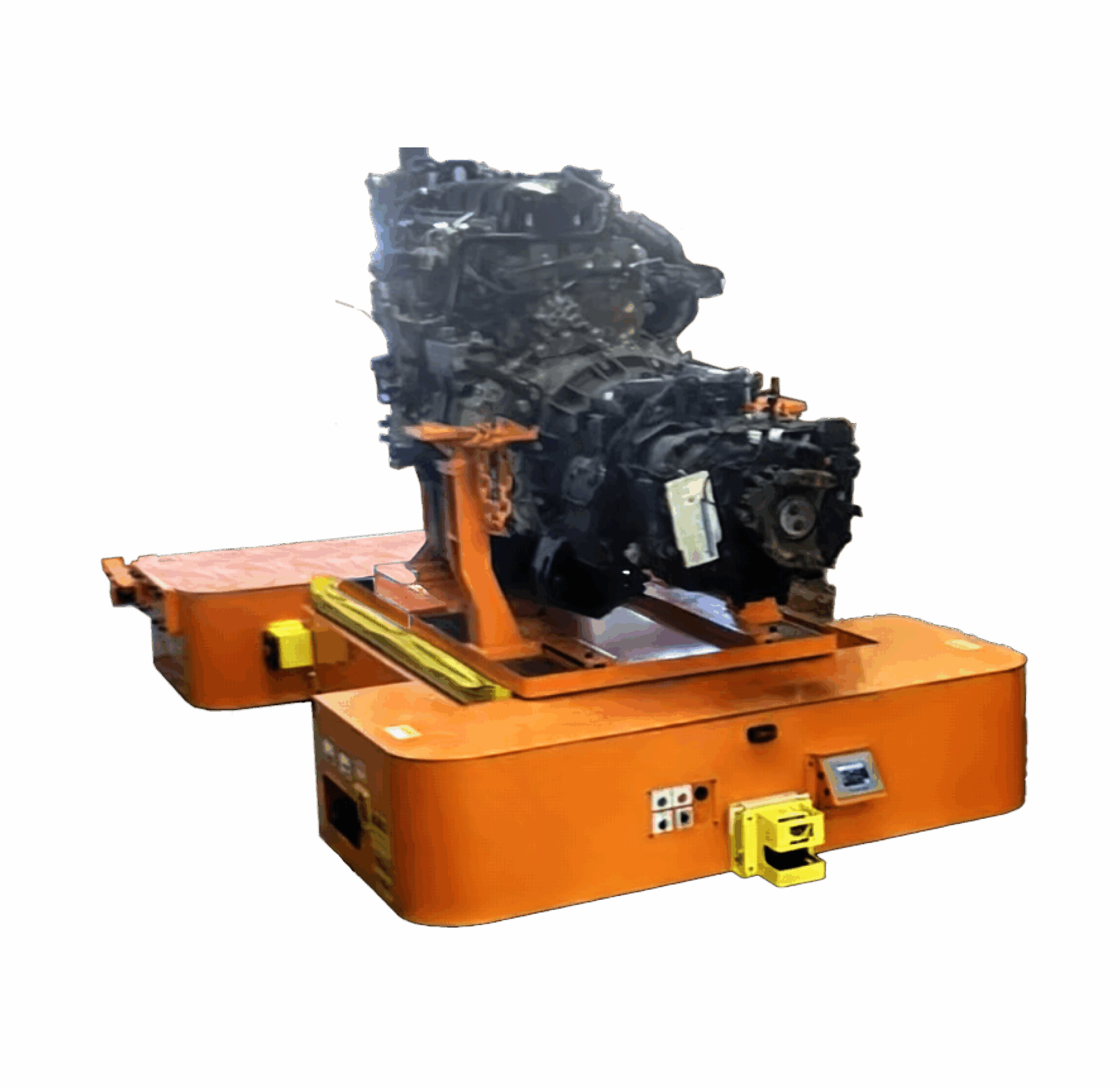

M1000-A
The M1000-A is a 10,000 lbs capacity assembly line AGV.
Specifications
|
Base Capacity |
10,000 lbs / 22,000 lbs |
|---|---|
|
Footprint |
67.5" W x 65" L x 16" H |
|
Travel Speed |
2 to 120 fpm |
|
90° / 180° Turn Radius |
72" / 96" |
|
Max Charge |
180 amp |
|
Base Capacity |
4,536 kg / 9,979 kg |
|---|---|
|
Footprint |
1,715 mm W x 1,651 mm L x 406 mm H |
|
Travel Speed |
1 to 37 mpm |
|
90° / 180° Turn Radius |
1,829 mm / 2,438 mm |
|
Max Charge |
180 amp |
Features of the M1000-A
Safety
All Daifuku AGVs meet the ANSIB56.5 Safety Standard for North America. The M1000-A can also be modified to meet CE Safety Standards for the UK, Europe, and Australia.
Return on Investment
Faster ROI than other automated assembly lines
Easy to Manage
Customers can change and modify themselves without assistance
Longevity
Long life span with minimal maintenance
Adaptability
Assembly lines adopt to any available floor space
