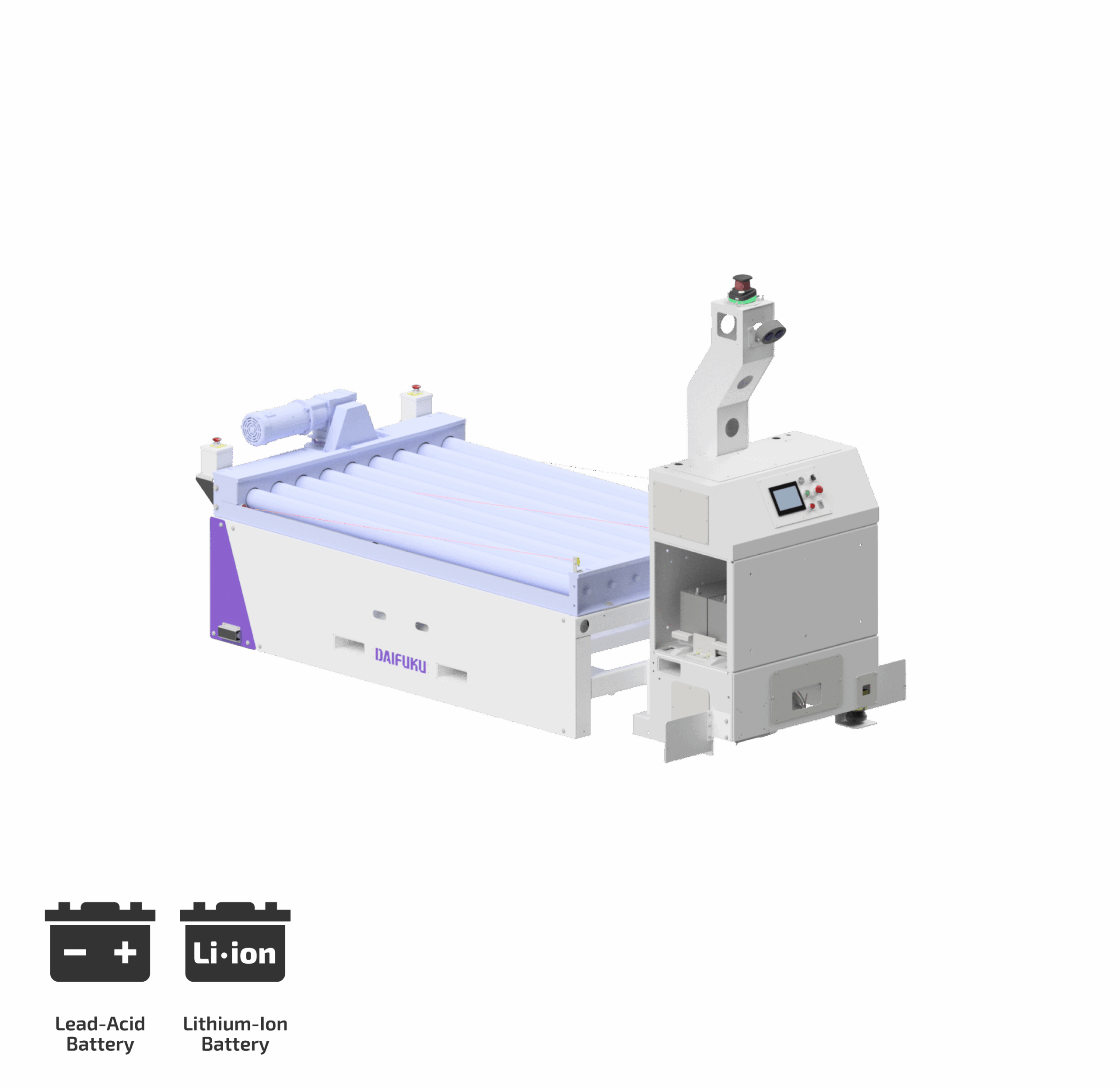

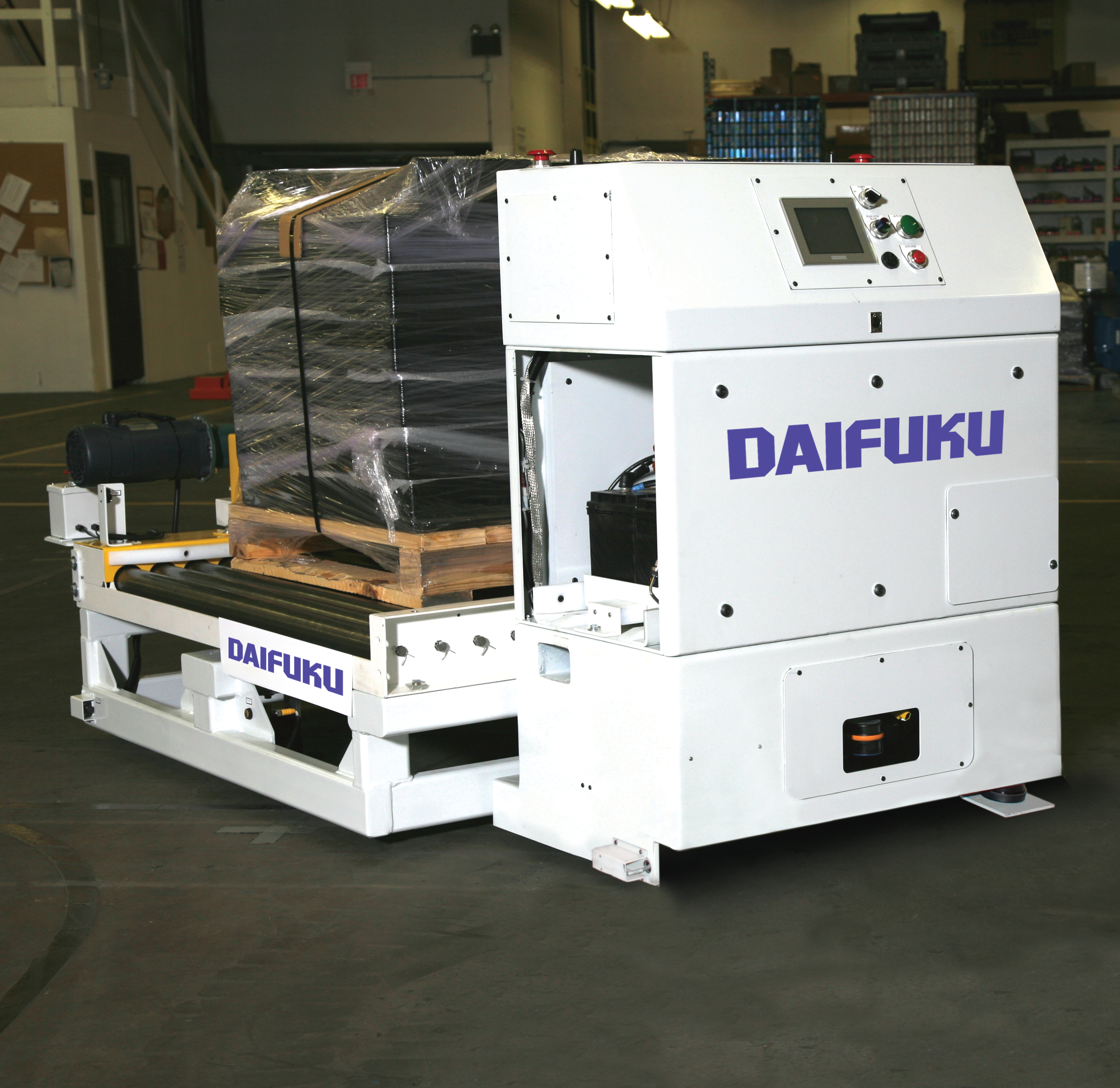

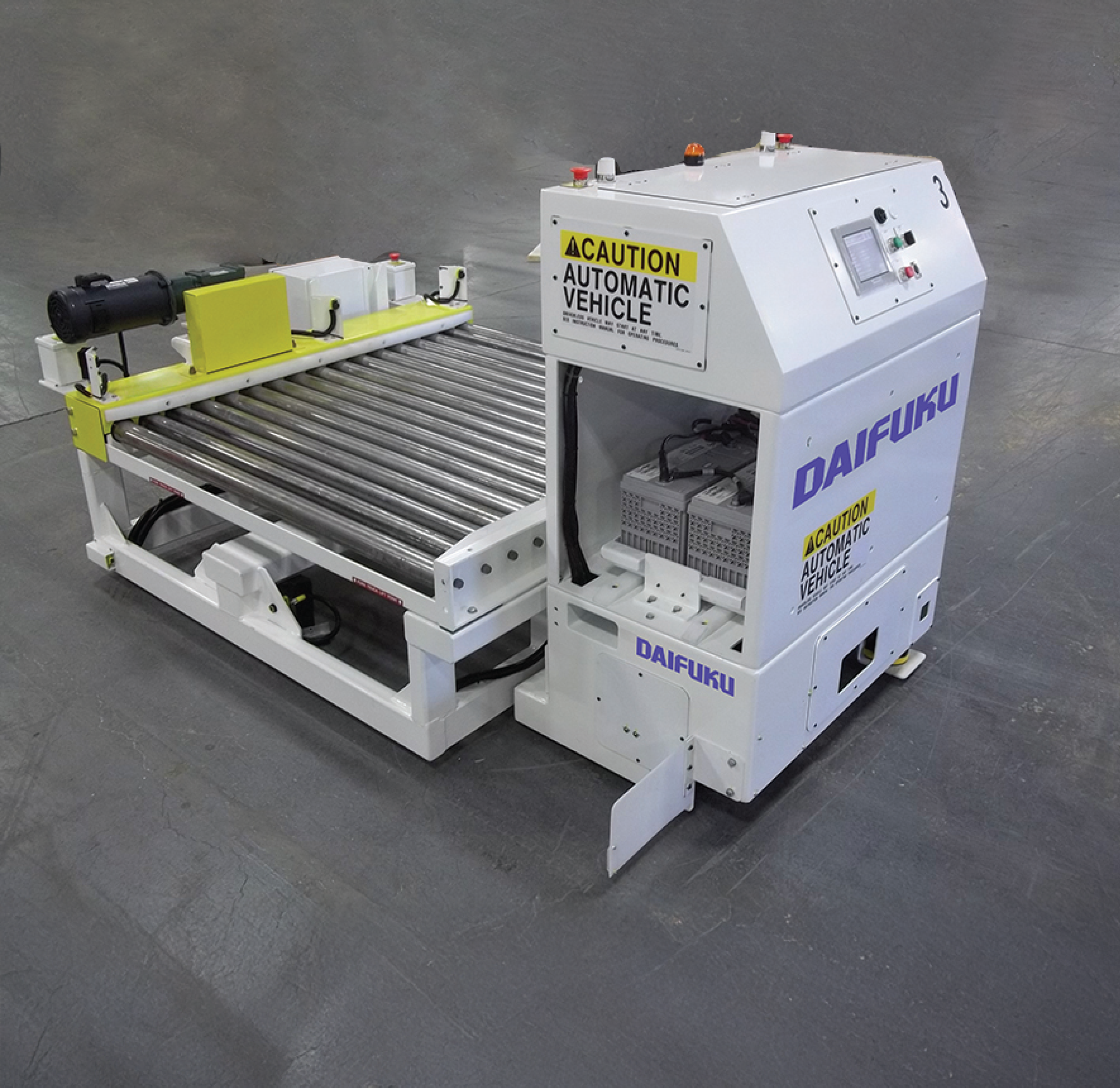

M300-SC
The M300-SC is a powered conveyor deck vehicle with high value features for today’s demanding material handling solutions. Optionally, the M300-C can also carry two conveyor decks.
Specifications
|
Base Capacity |
3,200 lbs |
|---|---|
|
Footprint |
57" W x 91" L x 51" H |
|
Travel Speed |
15 to 240 fpm |
|
Weight / with batteries |
2,360 lbs / 2,600 lbs |
|
Navigation Type |
Natural Feature, Laser or Magnetic Tape/Bar Guidance |
|
Automatic Charge |
80 amp charge rate (if equipped) |
|
Base Capacity |
1,451 kg |
|---|---|
|
Footprint |
1450 mm W x 2310 mm L x 1300 mm H |
|
Travel Speed |
5 to 73 mpm |
|
Weight / with batteries |
1070 kg / 1180 kg |
|
Navigation Type |
Natural Feature, Laser or Magnetic Tape/Bar Guidance |
|
Automatic Charge |
80 amp charge rate (if equipped) |
Features of the M300-SC
Safety
All Daifuku AGVs meet the ANSIB56.5 Safety Standard for North America and meet or can be modified to meet CE Safety Standards for the UK, Europe, and Australia.
Capacity
3,200 lbs load capacity. Allows pallet movement to/from conveyors, with a transfer time in as little as 10 seconds.
Efficiency
The M300-SC operates on battery power, while also automatically charging, yielding up to 24/7 fully automatic operation.
Integration
Can integrate with Plant Control Systems via Wi-Fi communications and our System SAM software to provide traffic control.
Affordability
Many applications can demonstrate Return On Investment in three months or less.
Simplicity
CartTools™ and AGV Tools software provide a user-friendly interface to implement/make changes.

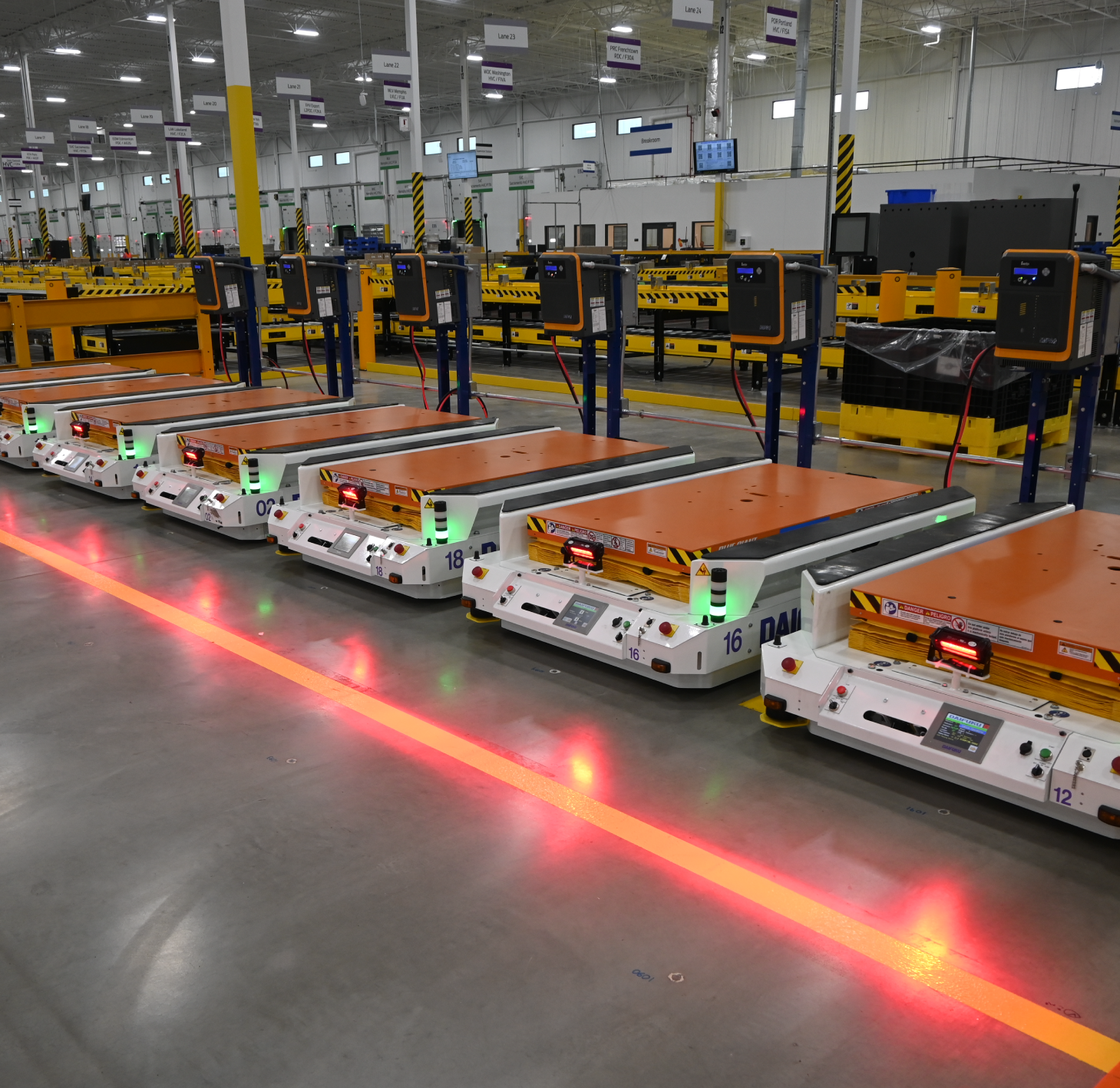

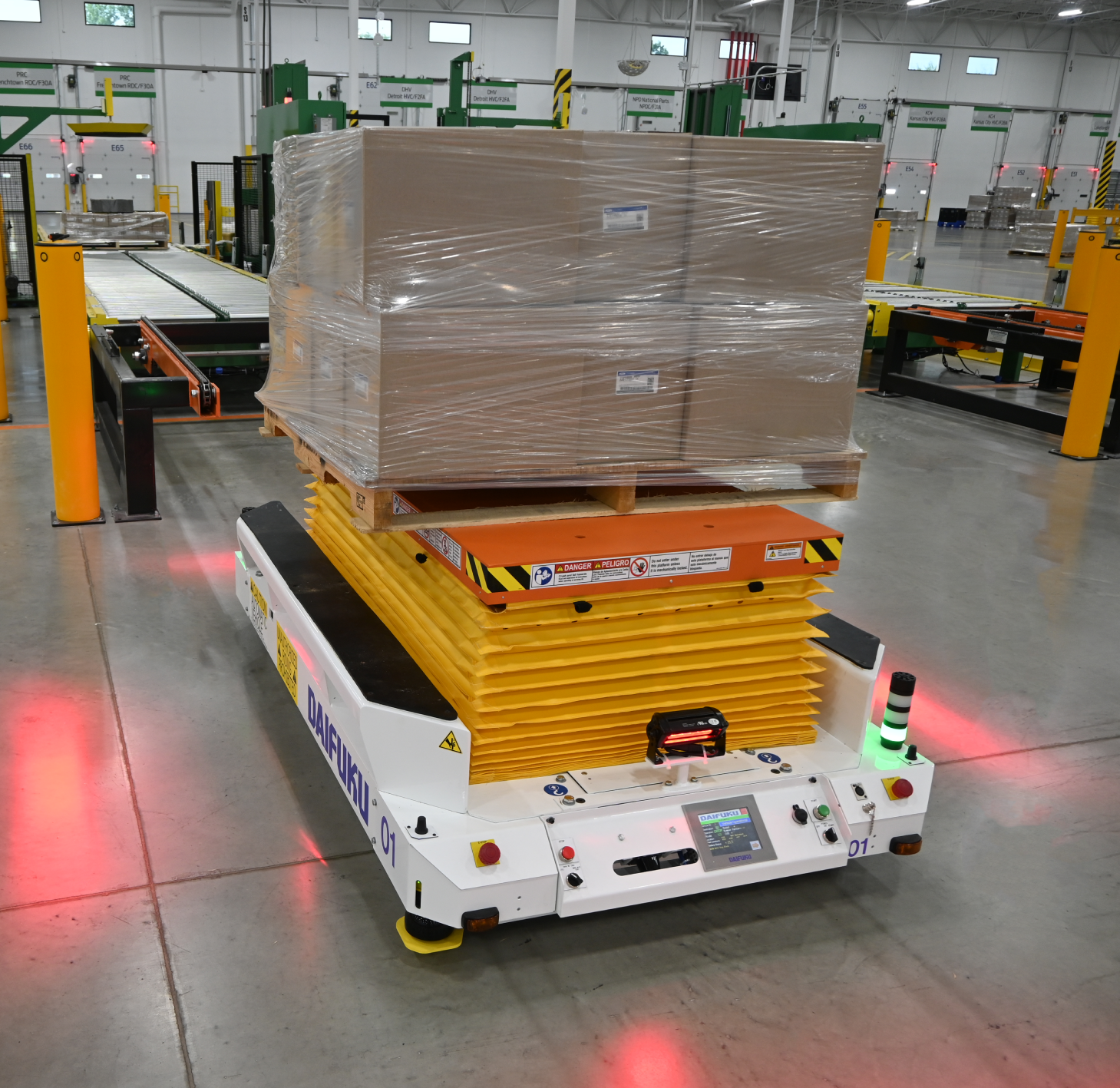

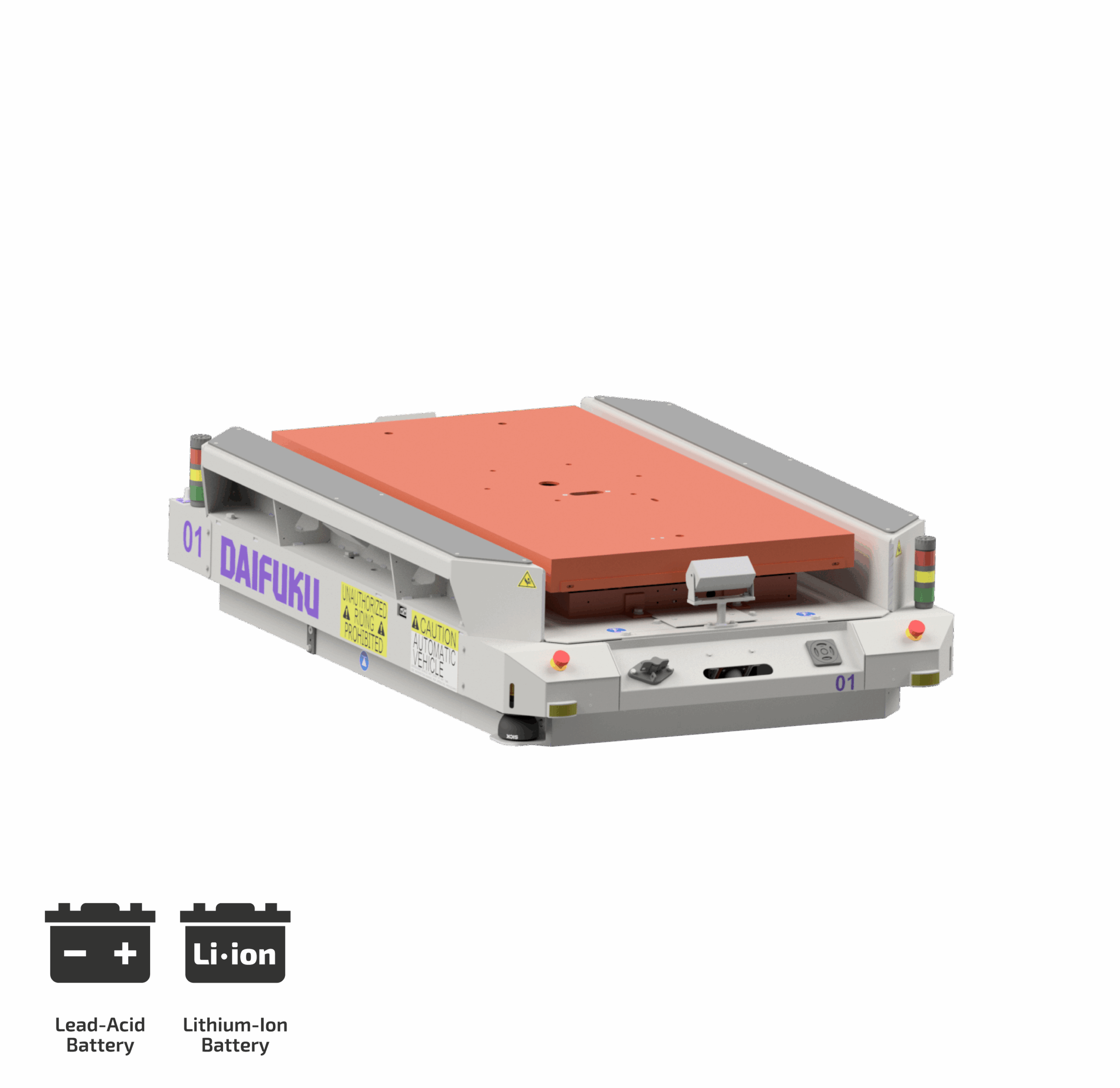

U2200
Previously known as M500-U
The U2200 offers customers the ultimate flexibility. This AGV can have a Lift Deck, Conveyor Top or a Flat Platform, engineered for many applications.
Specifications
|
Base Capacity |
5,000 lbs |
|---|---|
|
Footprint |
48" W x 78.6" L x 11.25" H |
|
Travel Speed |
15 to 240 fpm |
|
Weight with batteries |
2,000 lbs |
|
Navigation Type |
Natural Feature or Inertial |
|
Automatic Charge |
140 amp charge rate |
|
Base Capacity |
2,268 kg |
|---|---|
|
Footprint |
1219 mm W x 1996 mm L x 286 mm H |
|
Travel Speed |
4 to 73 mpm |
|
Weight with batteries |
909 kg |
|
Navigation Type |
Natural Feature or Inertial |
|
Automatic Charge |
140 amp charge rate |
Features of the U2200
Safety
All Daifuku AGVs meet the ANSIB56.5 Safety Standard for North America and meet or can be modified to meet CE Safety Standards for the UK, Europe, and Australia.
Maneuverability
The ultra-low top of deck is ideally suited to carry heavy loads at an ergonomic height, also available with lift or conveyor deck. This AGV is highly maneuverable with center rotate and bidirectional capabilities making the best use of your valuable space.
Versatility
This AGV supports both Natural Feature Navigation and Inertial navigation ensuring the ability to navigate in challenging environments.
Efficiency
Highly efficient AC drives powered by optional lithium batteries for fast charging and long life. Automatic charging supports 24/7 operation.
Integration
With Daifuku’s System Automation Manager™ (SAM) software providing traffic control and fleet coordination, AGV operations may be integrated with Plant Control and Warehouse Management Systems.
Simplicity
CartTools™ and AGV Tools software provide a user-friendly interface to implement/make changes.

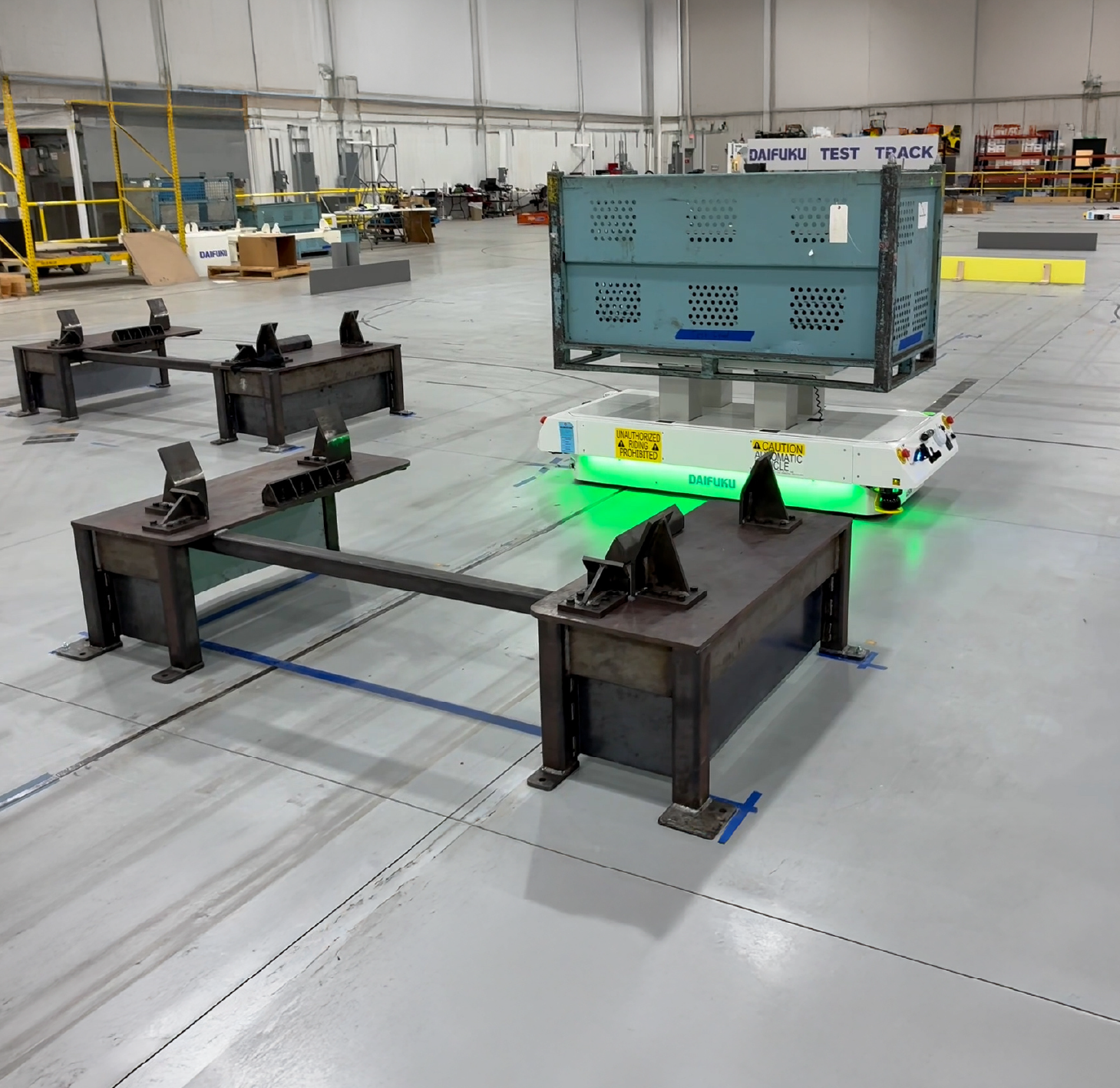

U1500
Specifications
|
Base Capacity |
3,300 lbs |
|---|---|
|
Footprint |
35" W x 77" L x 14.37" H |
|
Travel Speed |
15 to 360 fpm |
|
Weight with batteries |
1,150 lbs |
|
Navigation Type |
Natural Feature or Inertial |
|
Automatic Charge |
80 amp charge rate |
|
Base Capacity |
1500 kg |
|---|---|
|
Footprint |
889 mm W x 1956 mm L x 365 mm H |
|
Travel Speed |
4.5 to 109 mpm |
|
Weight with batteries |
523 kg |
|
Navigation Type |
Natural Feature or Inertial |
|
Automatic Charge |
80 amp charge rate |
Features of the U1500
Safety
All Daifuku AGVs meet the ANSIB56.5 Safety Standard for North America and meet or can be modified to meet CE Safety Standards for the UK, Europe, and Australia.
Efficiency
Highly efficient AC drives powered by optional lithium batteries for fast charging and long life. Automatic charging supports 24/7 operation.
Maneuverability
The ultra-low top of deck is ideally suited to carry heavy loads at an ergonomic height, also available with lift or conveyor deck. This AGV is highly maneuverable with center rotate and bidirectional capabilities making the best use of your valuable space.
Integration
With Daifuku’s System Automation Manager™ (SAM) software providing traffic control and fleet coordination, AGV operations may be integrated with Plant Control and Warehouse Management Systems.
Simplicity
CartTools™ and AGV Tools software provide a user-friendly interface to implement/make changes.
Robust
The U1500 follows our decades of
experience building rugged AGVs suited to
industrial environments.
